About EBONY HP PTA

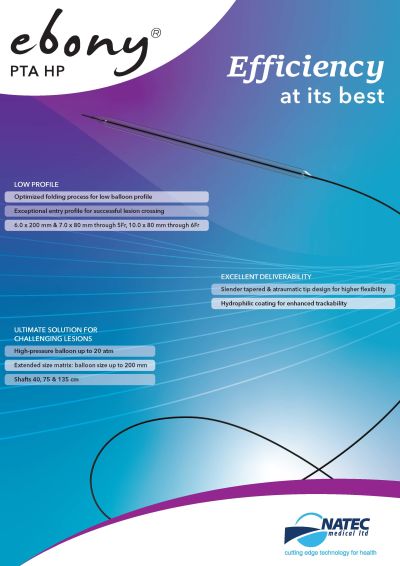

Efficiency at its best: Ebony HP PTA low profile balloon offers optimized folding process for a low balloon profile, allowing for exceptional entry profile for successful lesion crossing. This means that the balloon can easily navigate through narrow and challenging lesions, improving the overall efficiency of the procedure.

Excellent deliverability: Ebony HP PTA is designed with a slender tapered and atraumatic tip, providing higher flexibility during the procedure. Additionally, it is coated with a hydrophilic coating, enhancing its trackability. This ensures smooth and easy delivery of the balloon to the target site.

Ultimate solution for challenging lesions: Ebony HP PTA low profile balloon can withstand high pressure up to 24 atm, making it suitable for treating challenging lesions. It also offers an extended size matrix, with balloon sizes ranging up to 200 mm. This versatility allows physicians to effectively treat a wide range of lesions.

Compatibility and convenience: Ebony HP PTA low profile balloon is compatible with various sheath sizes, ranging from 5F to 7F. This ensures that it can be used with different catheter systems, providing flexibility to the physician. Ebony HP PTA also has a usable shaft length of 40, 75, and 135 cm, allowing for easy maneuverability during the procedure.

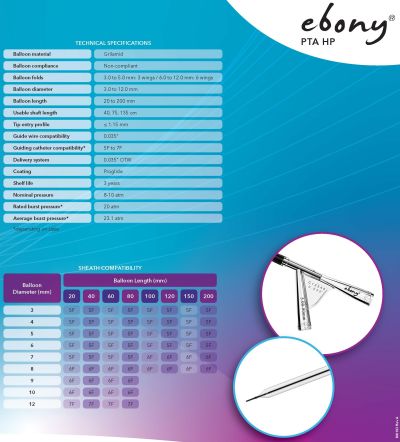

Technical specifications: Ebony HP PTA is made of Grilamid material, which is non-compliant and provides reliable performance. It has multiple balloon folds, with 3 wings for balloon diameters of 3.0 to 5.0 mm and 6 wings for balloon diameters of 6.0 to 12.0 mm. Ebony HP PTA diameter ranges from 3.0 to 12.0 mm, and the balloon length ranges from 20 to 200 mm. The tip entry profile is approximately 1.15 mm, and it is compatible with 0.035" guide wires and OTW Proglide delivery system. Ebony HP PTA has a shelf life of 3 years and a nominal pressure of 8-10 atm, with a rated burst pressure of 20 atm and an average burst pressure of 23.1 atm.



*Refer to the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions. Information in this material is not a substitute for the product Instructions for Use.

CAUTION: Federal (USA) law restricts this device to sale by or on the order of a physician
